Multi-port hardware security gateways give a small office, lab, or rack a physical firewall with enough wired interfaces for its network design. The important differences are port count and speed, VPN capacity, remote management, security services, power design, and the network size each appliance targets.
Start with the actual upstream links, client count, and physical interfaces, then compare the management model and stated security or VPN features that fit the way the gateway will be administered.
A multi-port security gateway should match the number, speed, and administration plan of the wired paths it will actually protect.Best Multi-Port Hardware Security Gateways Compared
| Image | Product | Details | Check Price |
|---|---|---|---|
 | TP-Link ER605 | Best fit: Budget multi-port Gigabit wired office WAN layout: Up to 3 Gigabit WAN ports plus USB WAN backup VPN: 20 LAN-to-LAN IPsec; 16 OpenVPN, L2TP, and PPTP | Check Price on Amazon |
 | FortiGate 120G | Best fit: High-density enterprise security appliance Ports: 18 GE RJ45; 8 GE SFP; 4 10GE SFP+ Power: Dual non-hot-swappable AC supplies | Check Price on Amazon |
 | TP-Link ER707-M2 | Best fit: Multi-gig wired growing office WAN layout: 2 x 2.5Gb WAN-capable; 4 x Gb WAN/LAN; Gb SFP Capacity: 500,000 sessions; 1,000+ clients | Check Price on Amazon |
 | Zyxel USGLITE60AX | Best fit: Small-office managed security Scope: Up to 5 users; 2Gbps; 2 x 2.5G ports Security: IPS and anti-malware; Nebula cloud management | Check Price on Amazon |
 | NETGEAR FVS336G | Best fit: Conventional IPsec VPN firewall VPN: 25 dedicated IPsec tunnels Management: Web GUI; manual key and IKE SA assignment | Check Price on Amazon |
 | WatchGuard Firebox T25 | Best fit: Reporting-focused Gigabit firewall Ports: 5 Gigabit Ethernet ports Reporting: 100+ dashboards and reports including PCI and HIPAA | Check Price on Amazon |
 | SJRC 1U | Best fit: Rackmount OPNsense-oriented platform Ports: 4 x i226-V 2.5GbE Platform: Celeron N3160 AES-NI; 8GB RAM; 256GB mSATA | Check Price on Amazon |
1. TP-Link ER605 — Best Budget Multi-Port Router
TP-Link ER605 is the straightforward wired option for a small network that needs several Gigabit WAN paths rather than a high-end security appliance. It states one dedicated Gigabit WAN port, two Gigabit WAN/LAN ports, two Gigabit LAN ports, and support for up to three WAN ports through one device.
The USB port can support a compatible 4G or 3G modem for WAN backup. ER605 also lists SPI firewall controls, DoS defense, filtering, load balancing, Omada SDN integration, and several VPN connection counts, so a compact office gets both multi-WAN and remote-access features.
Decision point: Up to three Gigabit WAN ports plus a USB modem backup option fit a small office that needs several wired edge paths.For related network planning, see our multi-gig switch guide and our MoCA adapter guide.
Our TakeBuy the TP-Link ER605 if up to three Gigabit WAN paths and an optional USB modem backup fit a small wired office. Choose ER707-M2 if dual 2.5Gb WAN ports and higher stated session and client capacity are more important than a basic Gigabit layout.
- One dedicated Gigabit WAN and two Gigabit WAN/LAN ports give the buyer up to three stated WAN paths.
- The USB WAN port supports compatible 4G or 3G modem backup, which adds a stated mobile backup route.
- SPI firewall, DoS defense, IP, MAC, and URL filtering provide named security controls for a small wired network.
- Up to twenty LAN-to-LAN IPsec, sixteen OpenVPN, sixteen L2TP, and sixteen PPTP connections cover stated VPN use.
- Omada SDN integration and load balance support central management and distribution across the named WAN paths.
- All named Ethernet WAN ports are Gigabit, below the dual 2.5Gb ports stated for TP-Link ER707-M2.
- The lower-end wired layout lacks the 10GE SFP+ expansion and dual AC supplies listed for FortiGate 120G.
2. FortiGate 120G — Best High-Density Enterprise Security Gateway
FortiGate 120G is sized for a complex network rather than a small desk. It states eighteen Gigabit Ethernet RJ45 ports, eight Gigabit SFP slots, four 10GE SFP+ slots, SP5 hardware acceleration, dual non-hot-swappable AC power supplies, and a Security Fabric management and protection model.
The product is listed as an appliance without a subscription, so the purchase decision must separate the hardware port and power architecture from any additional service plan. It is the strongest fit when the network needs dense copper, fiber, and 10G connectivity with stated dual power resilience.
For adjacent rack decisions, see our wall-mount server-rack guide and our 10G SFP+ switch guide.
Our TakeBuy the FortiGate 120G if dense RJ45, SFP, and 10GE SFP+ connectivity with dual AC power fits an enterprise network. Skip it for a TP-Link, Zyxel, or SJRC appliance when the site has a modest number of users and does not need this port density.
- Eighteen Gigabit RJ45 ports, eight SFP slots, and four 10GE SFP+ slots support a dense stated network port mix.
- SP5 hardware acceleration is stated for rapid application identification and efficient security operation in enterprise environments.
- Dual non-hot-swappable AC power supplies give a stated design for power resilience in mission-critical network activity.
- Security Fabric integration, SSL inspection, and FortiGuard services provide named advanced security and management features.
- FortiLink enables centralized security and network management across compatible FortiGate devices according to the listing.
- The appliance-only listing excludes a subscription, so service requirements need separate planning before deployment.
- Its port density and dual power design can exceed the needs of a five-user Zyxel small-office deployment.
- Dual AC supplies are non-hot-swappable, so a buyer planning power maintenance has to plan around that.
3. TP-Link ER707-M2 — Best Multi-Gig Office Router
TP-Link ER707-M2 is the most direct match when dual multi-gig internet links are the central requirement. It states one 2.5Gb WAN port, one 2.5Gb WAN/LAN port, four Gigabit WAN/LAN ports, one Gigabit SFP WAN/LAN port, and a USB 2.0 port for storage or LTE backup with a dongle.
The router also lists 500,000 concurrent sessions, more than 1,000 clients, remote cloud access, Omada management, load balance, and substantial stated VPN connection counts. With those figures, a growing office gets faster ports than ER605 offers without moving to a dense enterprise firewall.
Decision point: Two 2.5Gb WAN-capable ports and 500,000 stated concurrent sessions fit a multi-gig office with several upstream paths.For multi-gig expansion, see our 2.5GbE adapter guide and our multi-gig switch guide.
Our TakeBuy the TP-Link ER707-M2 if two 2.5Gb WAN-capable ports, LTE backup support, and Omada cloud management fit a multi-gig office. Choose Zyxel if its named IPS, anti-malware, and five-user small-office framing better matches the deployment.
- One 2.5Gb WAN and one 2.5Gb WAN/LAN port give a dual multi-gig upstream layout for modern connections.
- Four Gigabit WAN/LAN ports and one Gigabit SFP WAN/LAN add several stated flexible port-assignment choices.
- Five hundred thousand concurrent sessions and more than one thousand clients state a larger network scale than basic router models.
- USB 2.0 supports storage and LTE backup with a dongle, giving a named backup option beyond wired WAN ports.
- Up to one hundred LAN-to-LAN IPsec, sixty-six OpenVPN, sixty L2TP, and sixty PPTP connections support stated VPN scale.
- Two 2.5Gb WAN-capable ports do not provide the four 10GE SFP+ slots stated for FortiGate 120G.
- The listing focuses on routing, capacity, and VPN counts rather than the named IPS and anti-malware bundle on Zyxel.
4. Zyxel USGLITE60AX — Best Small-Office Managed Security Gateway
Zyxel USGLITE60AX is expressly framed for up to five users, so it suits the smallest offices that put security first. It states dual-WAN intelligence, 2Gbps capacity, two 2.5G multi-gig ports, IPS, anti-malware, cloud management, and an included one-year Elite Pack for newly registered qualifying devices.
The five-user limit is a buying filter that tells you who the gateway is for. It makes sense where five users need a manageable dual-WAN security appliance with Nebula mobile and cloud administration. Skip it when the office needs a larger user count, more WAN ports, or a rack chassis.
For small-office connectivity, see our powerline adapter guide and our USB-C Ethernet adapter guide.
Our TakeBuy the Zyxel USGLITE60AX if up to five users need dual-WAN intelligence, IPS, anti-malware, two 2.5G ports, and simple Nebula cloud management. Skip it for ER707-M2 or FortiGate 120G when the network is materially larger than the stated five-user scope.
- The explicit up-to-five-user scope gives a small office a clear stated fit boundary before buying enterprise hardware.
- Dual-WAN intelligence and 2Gbps capacity address stated traffic distribution and connectivity continuity for critical applications.
- Two 2.5G multi-gig ports support faster WAN or LAN connections without a stated recabling requirement.
- IPS and anti-malware are named security services, giving the buyer a more security-led small-office feature set.
- Nebula mobile-app and centralized cloud management support setup and administration without additional controller hardware.
- The stated five-user scope is far smaller than ER707-M2’s more-than-one-thousand-client capacity figure.
- The included Elite Pack applies only to newly registered qualifying devices after the stated registration date.
5. NETGEAR FVS336G — Best Legacy VPN Firewall
NETGEAR FVS336G is a direct dual-WAN Gigabit firewall and VPN option built around a conventional web interface. The listing states twenty-five dedicated IPsec VPN tunnels, a web graphic user interface, and manual-key or Internet Key Exchange security-association assignment.
The FVS336G has a narrower feature set than newer models with multi-gig ports, cloud management, or more ports. It can still fit a buyer whose exact need is a named dual-WAN Gigabit firewall with a defined IPsec tunnel count and a familiar web management approach.
Decision point: Twenty-five dedicated IPsec VPN tunnels and web GUI management fit a conventional dual-WAN Gigabit VPN deployment. Our TakeBuy the NETGEAR FVS336G if a named dual-WAN Gigabit firewall with twenty-five IPsec tunnels and web GUI management matches an existing straightforward VPN workflow. Choose newer TP-Link, Zyxel, or rack hardware if multi-gig links, cloud management, or higher port density are essential.
- Twenty-five dedicated IPsec VPN tunnels give the buyer a specific stated remote-network capacity for a dual-WAN firewall.
- A web graphic user interface provides a direct stated local-management method without a cloud-controller requirement.
- Manual key and IKE security-association assignment supports named methods for defining VPN security relationships.
- The listing does not state multi-gig WAN ports, unlike the dual 2.5Gb TP-Link ER707-M2 and Zyxel models here.
- Twenty-five IPsec tunnels are fewer than TP-Link ER707-M2’s stated one hundred LAN-to-LAN IPsec connections.
6. WatchGuard Firebox T25 — Best Reporting-Focused Gigabit Appliance
WatchGuard Firebox T25 is a compact security appliance with five Gigabit Ethernet ports and a reporting-oriented description. The listing states that all logging and reporting functions are included, with more than one hundred dashboards and reports, including PCI and HIPAA reporting categories.
The product description also notes that the Wi-Fi capable T25-W version supports Wi-Fi 6. That sentence describes a related version, not the appliance named here, so choose the base T25 for its stated Gigabit ports and reporting features and do not assume wireless capability from the T25-W reference.
Decision point: Five Gigabit ports plus more than one hundred stated dashboards and reports fit a security workflow where reporting is a primary need. Our TakeBuy the WatchGuard Firebox T25 if five Gigabit ports and included logging with more than one hundred dashboards and reports match your security-administration workflow. Choose ER605 or ER707-M2 if multiple named WAN ports and load-balance details are the primary buying criteria.
- Five Gigabit Ethernet ports support a stated Gigabit LAN and WAN arrangement.
- Included logging and reporting give buyers access to more than one hundred named dashboards and reports.
- PCI and HIPAA reporting categories are specifically named, useful when the administrator needs those report types.
- The Wi-Fi 6 mention identifies the T25-W related version, so buyers can tell wired needs from wireless requirements.
- The base T25 listing’s Wi-Fi 6 language refers to the T25-W version, not an assumed feature of every T25 appliance.
- Five Gigabit ports lack the 2.5G WAN/LAN and SFP flexibility stated for TP-Link ER707-M2.

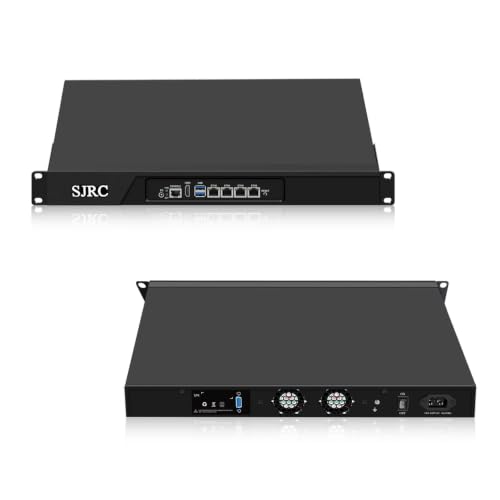

7. SJRC 1U — Best Rackmount OPNsense Platform
SJRC 1U is a hardware platform rather than a pre-defined service appliance. It states a Celeron N3160 processor with AES-NI, four i226-V 2.5GbE ports, 8GB DDR3 RAM, a 256GB mSATA SSD, a 19-inch 1U chassis, and optimization for open-source systems such as OPNsense.
The platform also lists an internal SATA bracket, RJ45 console, Mini-PCIe with SIM-card slot for optional LTE expansion, and dual display outputs. It suits a buyer who wants rack hardware and is prepared to choose and administer the firewall software stack, rather than a turnkey subscription-led gateway.
For rack planning, see our vertical wall-mount rack guide and our multi-gig switch guide.
Our TakeBuy the SJRC 1U if four 2.5GbE ports, AES-NI, optional LTE expansion, and an OPNsense-oriented rack platform suit your own firewall software administration. Skip it for a turnkey TP-Link, Zyxel, Fortinet, or WatchGuard appliance if you do not want to manage that software layer.
- Four i226-V 2.5GbE ports give a rack firewall platform multi-gig connectivity across several stated LAN or WAN paths.
- Celeron N3160 hardware with AES-NI is positioned for encrypted traffic processing and OPNsense-oriented operation.
- The standard 19-inch 1U chassis fits rack deployment without adapting a desktop appliance to a rack shelf.
- RJ45 console, dual display outputs, USB 3.0, auto power-on, Wake-on-LAN, and PXE add stated serviceability features.
- Mini-PCIe with a SIM-card slot allows optional 4G LTE expansion for a buyer planning a cellular backup path.
- The platform is OPNsense-oriented hardware, so the buyer chooses and administers the firewall software.
- The 12V DC single power supply lacks the dual AC power design stated for the FortiGate 120G appliance.
Buying Guide

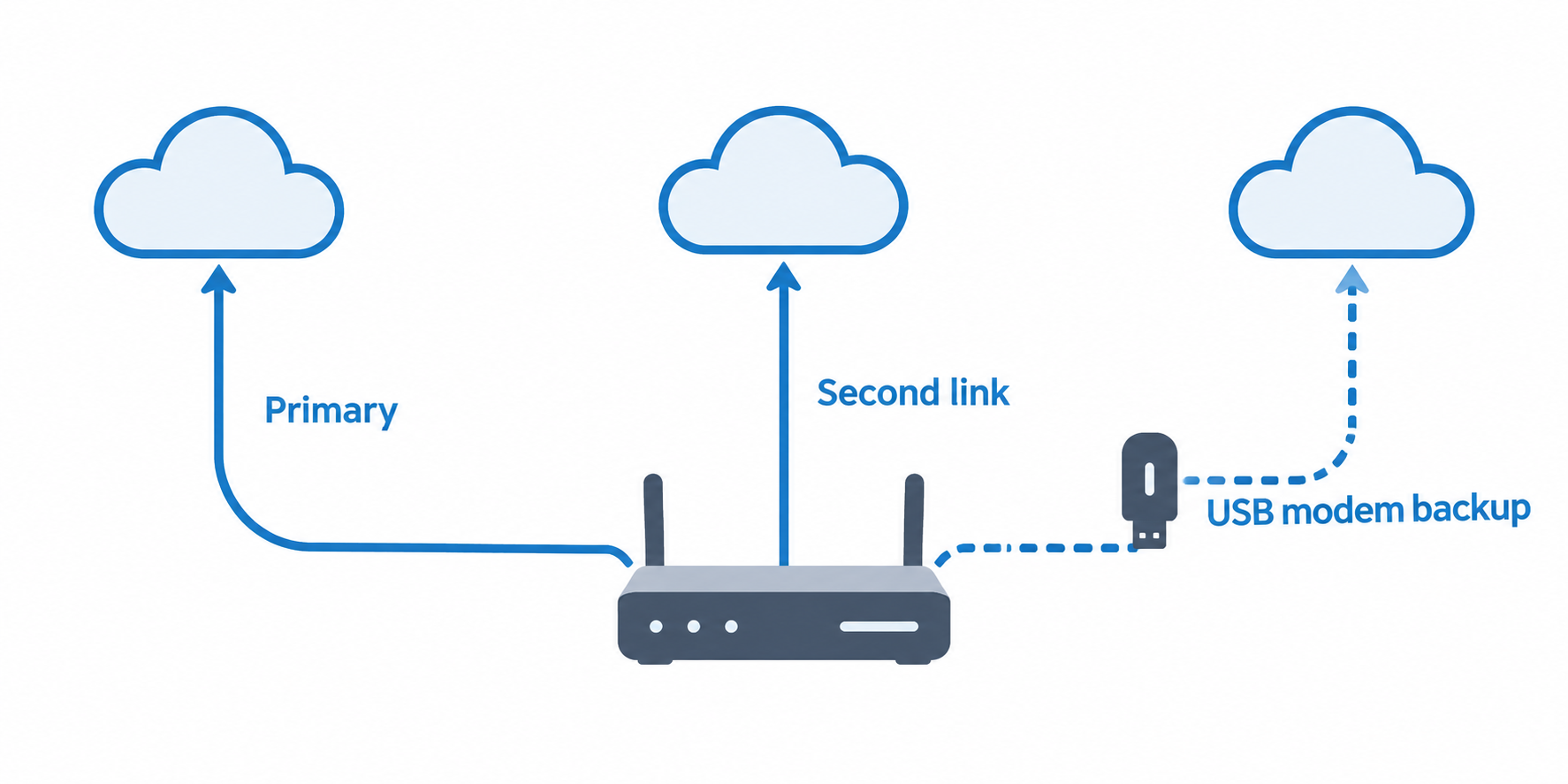

Count the active and backup upstream links
Choose a gateway around the actual number of WAN paths you will use. TP-Link ER605 supports up to three Gigabit WAN ports and USB modem backup, while ER707-M2 has two 2.5Gb WAN-capable ports plus four Gigabit WAN/LAN ports and an SFP WAN/LAN port. More ports help only if the connection plan uses them.
For a cellular fallback, verify the exact backup mechanism. ER605 and ER707-M2 describe USB modem or LTE-dongle backup. SJRC has a Mini-PCIe slot with SIM-card slot for optional LTE expansion, but that is a hardware-platform option, not an already-configured WAN service.
Match link speed to the network edge
Pick Gigabit hardware when the upstream and downstream network are Gigabit. ER605, FVS336G, and Firebox T25 use Gigabit-oriented port descriptions. Gigabit can be the correct size for a small office even when newer devices advertise multi-gig interfaces.
Choose multi-gig or fiber-oriented ports when the network requires them. ER707-M2 and Zyxel USGLITE60AX state 2.5G ports, SJRC has four 2.5GbE ports, and FortiGate 120G includes four 10GE SFP+ slots. The cable, switch, and upstream service must support those speeds before they become useful.
Decide whether a turnkey appliance or a platform fits
Choose a turnkey appliance when vendor controls, reporting, or cloud management are part of the operating model. TP-Link offers Omada management, Zyxel names Nebula management, FortiGate names Security Fabric and FortiLink, and WatchGuard describes included reporting dashboards.
Choose SJRC 1U when the team intends to administer its own firewall software. Its value is the stated 1U chassis, AES-NI, storage expansion, console, and 2.5GbE hardware. Those parts do not replace the need to deploy and maintain the chosen software stack.
Compare security and VPN claims by the deployment
Use named security features as deployment-specific evidence rather than generic labels. Zyxel states IPS and anti-malware for up to five users, ER605 lists SPI firewall and filtering controls, and FortiGate lists SSL inspection and FortiGuard services. Those functions are not interchangeable simply because each product is called a firewall.
For remote links, count the stated VPN connection capacity. ER605 lists twenty LAN-to-LAN IPsec connections, while ER707-M2 lists one hundred. NETGEAR FVS336G states twenty-five dedicated IPsec tunnels. Match the number to remote sites and users rather than choosing by brand alone.

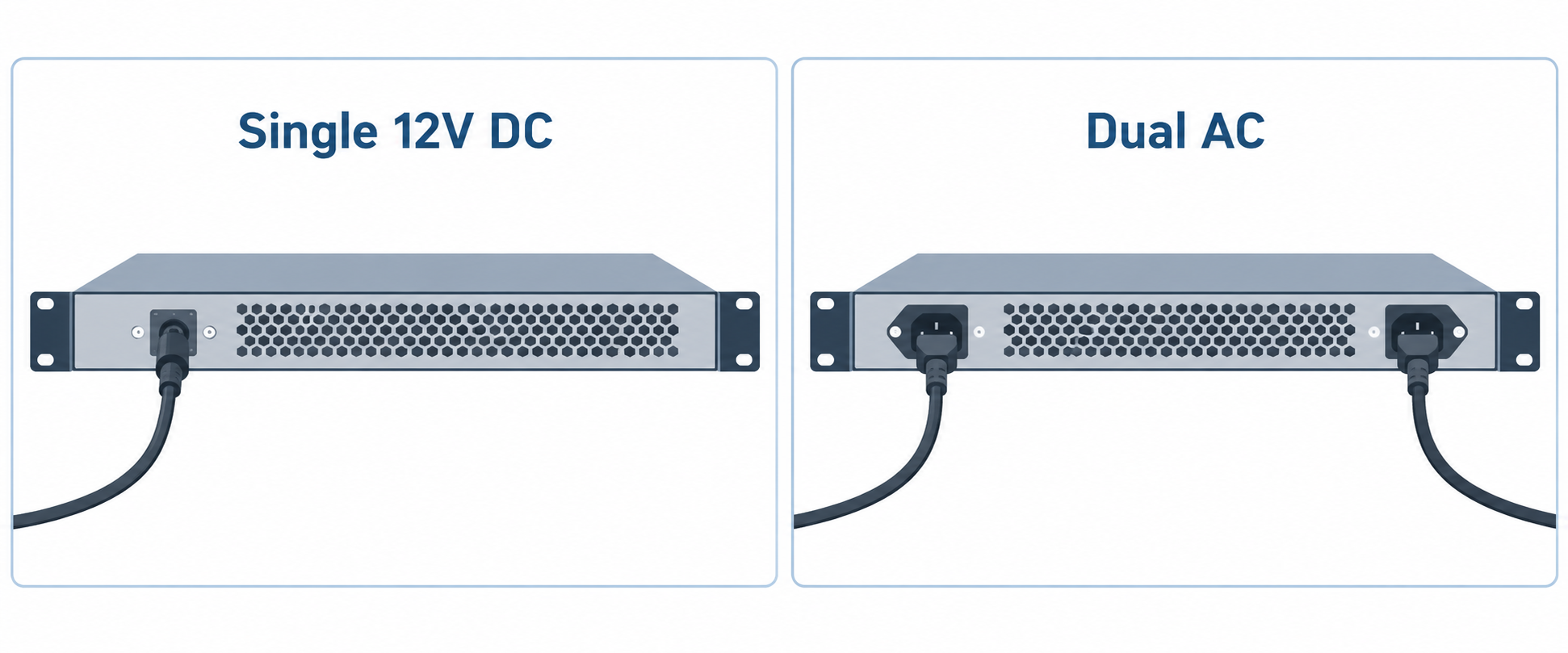

Plan power, rack space, and recovery procedures
Power design affects the choice when gateway availability is critical. FortiGate 120G has two non-hot-swappable AC supplies, while SJRC uses a single 12V DC supply in a 1U rack chassis. Those facts lead to different power and replacement plans even before selecting internet links.
Physical management also affects the work after installation. A 1U rack chassis with RJ45 console, front HD, and rear VGA gives SJRC a different service profile from FortiGate’s dense network ports and centralized control. A small desktop site may value cloud onboarding, whereas a rack deployment may value local service access.
FAQ
How do multiple WAN-capable ports affect a gateway choice?
Multiple WAN-capable ports can give a gateway more than one upstream network path, subject to the functions the product describes. TP-Link ER605 states up to three WAN ports and USB modem backup, while ER707-M2 states dual 2.5Gb WAN-capable ports and LTE backup through a dongle.
The implementation differs by product and connection plan. Zyxel describes dual-WAN intelligence and traffic distribution, while an SJRC platform needs the chosen firewall software configured for its hardware ports. Buy the gateway that describes the upstream paths and management model you will actually deploy.
Do I need 2.5Gb WAN ports?
You need 2.5Gb WAN ports when the upstream service, switch, and internal network are designed to use that speed. TP-Link ER707-M2 and Zyxel USGLITE60AX state 2.5G ports, while SJRC provides four 2.5GbE ports for a rack firewall platform.
Gigabit can be the more sensible choice when that is the existing network limit. ER605 gives several Gigabit WAN-capable ports, and Firebox T25 has five Gigabit Ethernet ports. Paying for faster interfaces does not create a multi-gig connection unless the rest of the path supports it.
How many VPN tunnels should a small office need?
The right number is the number of remote sites and authorized users the deployment needs to connect. ER605 states twenty LAN-to-LAN IPsec connections, FVS336G states twenty-five dedicated IPsec tunnels, and ER707-M2 states one hundred LAN-to-LAN IPsec connections.
Those figures are not a quality ranking on their own. A five-user Zyxel deployment may need fewer connections but more integrated security services. Count the planned tunnels and protocol requirements first, then choose a model whose stated capacity covers them with headroom.
Is a rack firewall platform harder to manage?
A rack firewall platform can require more administration because hardware and firewall software are separate decisions. SJRC describes a 1U rack system optimized for OPNsense, with AES-NI, four 2.5GbE ports, console access, storage expansion, and optional LTE hardware, but the buyer still manages the software stack.
A turnkey gateway can simplify the initial management approach by using Omada, Nebula, Security Fabric, or WatchGuard reporting features. The tradeoff is less control over the platform design. Choose the administration model the team can operate after the gateway has been installed.
Does dual power always mean no downtime?
No, dual power hardware is only one part of an availability plan. FortiGate 120G states two non-hot-swappable AC power supplies, which can improve resilience but still requires planned procedures for servicing a supply. Network links, configuration backups, and the upstream connections also affect availability.
Single-supply hardware may still fit many deployments. SJRC uses a 12V DC supply and ER605 is a compact wired router. The right choice is to align the stated power design with the importance of the network and the practical recovery plan, not to assume any dual-power appliance eliminates all interruptions.
Bottom Line
TP-Link ER707-M2 is the multi-gig office choice for a growing network, Zyxel USGLITE60AX serves a stated five-user security-focused deployment, and SJRC 1U is the rack platform for a team prepared to run its own OPNsense-style firewall stack. FortiGate 120G belongs where dense ports, fiber, 10G, and dual AC power are genuinely required.
