Vertical wall-mount server racks use wall or under-desk space for 19-inch networking, AV, and compact server hardware when a floor rack would be excessive. The important decisions are rack-unit height, equipment depth, load rating, stud or wall material, ventilation, physical protection, and whether the installation needs an open bracket or an enclosure.
Every product here states 19-inch rack compatibility, but they suit different jobs. A 3U or 4U open bracket can fit a switch and patch panel, while a deeper 6U enclosure gives more room for protected hardware, cable routing, and ventilation.
Match the rack-unit count, equipment depth, and supported wall structure before choosing the highest stated weight capacity.Best Vertical Wall Mount Server Racks Compared
| Image | Product | Details | Check Price |
|---|---|---|---|
 | StarTech RK419WALLV-N | Best fit: 4U high-capacity open frame Capacity: 121.2lb; 55kg Standard: 19-inch EIA-310; 14-gauge steel | Check Price on Amazon |
 | JINGCHENGMEI 4U150 | Best fit: 4U ready-assembled bracket Capacity: 125lb Depth: 7.56 inches; wall or under-desk | Check Price on Amazon |
 | STANDOPIA JHSVR-3U | Best fit: 3U stud-mounted compact bracket Capacity: 121lb Installation: 16-inch stud spacing; M6 hardware | Check Price on Amazon |
 | Tecmojo 2U Vented Enclosure | Best fit: 2U enclosed vented mounting Capacity: 60lb; 27kg Features: Four-sided vents; adjustable rails | Check Price on Amazon |
 | Mofangtech 4U | Best fit: 4U light-load simple bracket Capacity: 44lb Depth: 7.56 inches; 2mm steel | Check Price on Amazon |
 | StarTech RK319WALLV | Best fit: 3U high-capacity open frame Capacity: 150lb; 68kg Mounting: 16-inch centers; EIA-310 | Check Price on Amazon |
 | NavePoint 6U Vertical Enclosure | Best fit: 6U lockable ventilated enclosure Capacity: 132.27lb Depth: 20.6 to 23.6 inches adjustable | Check Price on Amazon |
 | JINGCHENGMEI 6U150 | Best fit: 6U ready-assembled heavy bracket Capacity: 125lb Depth: 11.06 inches; 2mm metal | Check Price on Amazon |
1. StarTech RK419WALLV-N — Best 4U High-Capacity Open Frame
For a room where a full cabinet is unnecessary, StarTech RK419WALLV-N is a 4U open-frame bracket for standard 19-inch rack-mountable servers, patch panels, NAS hardware, and networking equipment. The listing states EIA-310 compliance, a 121.2lb or 55kg capacity, 14-gauge 2mm cold-rolled steel, and a minimal-footprint design.
The kit includes wall screws, M5 cage nuts, M5 equipment screws, and four keyhole wall-mount holes. It is a practical choice when the equipment is shallow enough for an open bracket and the buyer wants simple service access rather than lockable enclosure panels.
Decision point: Four U, 121.2lb capacity, and 14-gauge steel fit a compact open-frame rack for standard 19-inch equipment.For adjacent network planning, see our multi-gig switch guide and our hardware security gateway guide.
Our TakeBuy StarTech RK419WALLV-N for a 4U open-frame installation that needs stated 121.2lb capacity and included M5 hardware. Choose NavePoint when a deep lockable enclosure and protected cable routing matter more.
- Four U of EIA-310 space supports standard 19-inch servers, patch panels, NAS hardware, and networking equipment.
- A 121.2lb or 55kg stated capacity gives buyers a concrete equipment-load boundary for a compact wall installation.
- Fourteen-gauge 2mm cold-rolled steel provides a listed structural material rather than a light-duty sheet-metal bracket.
- Four keyhole wall mounts simplify positioning and removal when the wall hardware is properly installed.
- Included wall screws, M5 cage nuts, and M5 equipment screws reduce the number of mounting parts to source separately.
- The open-frame 4U design lacks the perforated panels and anti-theft locks stated for the enclosed NavePoint cabinet.
- Its minimal footprint offers no stated adjustable depth for longer equipment, unlike NavePoint’s 20.6 to 23.6-inch cabinet.
2. JINGCHENGMEI 4U150 — Best 4U Ready-Assembled Bracket
For a quick switch, router, patch-panel, UPS, or power-conditioner mount, JINGCHENGMEI 4U150 is a 4U steel 19-inch bracket with a stated 125lb maximum capacity and 7.56-inch depth. It arrives fully assembled with cage screws and nuts, so there is no cabinet to assemble first.
The listing also states vertical wall placement or horizontal under-desk placement. Its compact 19.29-inch width and 5.9-inch height let a buyer map the equipment footprint, but the actual device depth and cable bend radius must fit the shallow bracket.
Decision point: Four U, 125lb capacity, and a 7.56-inch depth fit a ready-assembled shallow 19-inch bracket. Our TakeBuy JINGCHENGMEI 4U150 when a preassembled 125lb 4U bracket and shallow 7.56-inch profile fit the equipment. Skip it for a deep enclosure when device protection or longer hardware is part of the job.
- A 125lb maximum rating gives a buyer a stated capacity close to heavier open-frame 4U alternatives.
- Four U accommodates 19-inch patch panels, switches, routers, UPS units, and power conditioners named by the listing.
- The 7.56-inch depth helps buyers screen shallow hardware before mounting it vertically against a wall.
- Fully assembled delivery with cage screws and nuts shortens the installation work before mounting the equipment.
- Vertical wall and horizontal under-desk placement provide two stated orientation choices for constrained rooms.
- The 7.56-inch depth may not suit longer equipment or rear cable bends that require the deeper 6U cabinet.
- An open 4U bracket does not provide the vents, side panels, or locks described for the NavePoint enclosure.

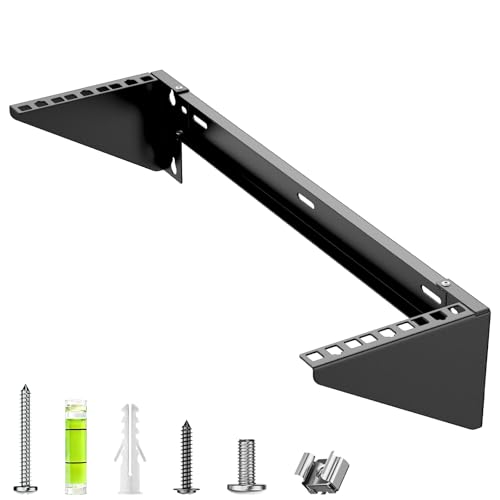

3. STANDOPIA JHSVR-3U — Best 3U Stud-Mounted Compact Bracket
For a tight home lab, studio, IT closet, or office network, STANDOPIA JHSVR-3U offers three rack units with a stated 121lb capacity in a wall or under-desk format. It fits EIA-310 standard 19-inch devices including switches, routers, patch panels, servers, and AV equipment.
Its mounting holes are stated at 16 inches on center for standard wall studs, and the package includes M6 cage nuts, screws, and wall hardware. The spacing is useful only when the actual wall structure supports the planned load, so verify the stud position and equipment weight before treating the 121lb figure as available capacity.
Buy STANDOPIA JHSVR-3U for a three-unit wall or under-desk rack aligned with 16-inch stud spacing. Choose StarTech RK319WALLV for more stated 150lb capacity in the same 3U open-frame class.
- Three U gives a compact installation a defined amount of standard 19-inch rack space without a floor cabinet.
- The stated 121lb capacity gives small equipment groups a concrete loading limit before selecting a wall location.
- Sixteen-inch-on-center mounting holes align with standard wall-stud spacing named by the product listing.
- Included M6 cage nuts, screws, and wall hardware provide the listed equipment-mounting components in one package.
- Wall or under-desk placement lets a buyer choose the stated orientation that preserves available floor clearance.
- Three U offers less vertical equipment space than the six-unit NavePoint and JINGCHENGMEI enclosure alternatives.
- The 121lb figure still depends on a wall structure and installation that can safely support the planned equipment load.

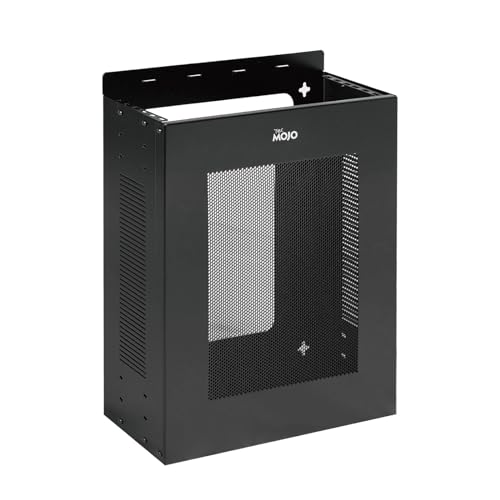

4. Tecmojo 2U Vented Enclosure — Best 2U Enclosed Vented Mounting
For equipment that needs panels around it and airflow through it, Tecmojo’s 2U enclosure offers vertical or horizontal mounting, four-sided vents, cable pass-through holes, and adjustable rail positions. The listing states a 60lb or 27kg capacity and EIA/ECA-310-E compliance for 19-inch equipment, including non-rack-mountable devices.
The enclosed design is the reason to choose it over an open bracket. Two U and 60lb are tighter limits than the larger open frames have, but it can organize a cable modem, telecom device, or AV component where a visible open rack is unsuitable.
For nearby equipment choices, see our multi-gig switch guide and our MoCA adapter guide.
Our TakeBuy Tecmojo for a compact enclosed 2U mount where ventilation and cable pass-through matter more than high capacity. Choose an open 4U bracket when the equipment needs more rack units or a higher stated load rating.
- Two U provides a compact enclosure for a small 19-inch IT, telecom, cable-modem, or AV equipment group.
- A 60lb or 27kg capacity gives the buyer a stated maximum before loading the enclosed wall mount.
- Four-sided vents support the listing’s airflow-focused design for equipment that should not sit in a sealed box.
- Adjustable rack-rail positions let buyers use the listed screw-hole combinations around their equipment needs.
- Bottom cable pass-through holes provide a stated route for cables instead of forcing them around enclosure edges.
- The 60lb rating is substantially below the 121 to 150lb capacities stated for several open-frame brackets.
- Two U cannot hold the larger 4U and 6U equipment groups supported by the other vertical rack choices.
5. Mofangtech 4U — Best 4U Light-Load Simple Bracket
For a smaller switch, patch panel, or light AV installation, Mofangtech is a simple 4U bracket with 19.29-inch width, 7.56-inch depth, and a stated 44lb maximum capacity. It arrives assembled with cage screws, nuts, wall hardware, and a bubble level, and it uses 2mm cold-rolled steel with a powder-coated finish.
The low load rating is its central constraint. It can fit a modest wall or under-desk installation where included hardware and a shallow bracket rank above high capacity, but it is not the choice for a heavy UPS or dense server group.
Decision point: Four U, 7.56-inch depth, and 44lb capacity fit a shallow light-load switch or patch-panel installation. Our TakeBuy Mofangtech for a light 4U rack where 44lb is enough and included mounting hardware is useful. Choose a 121lb or 125lb 4U bracket for a heavier networking or UPS plan.
- Four U supports a small standard 19-inch equipment group without moving to a larger six-unit cabinet.
- A 7.56-inch depth helps buyers match shallow patch panels and switches to available wall space.
- Two-millimeter cold-rolled steel and powder coating provide listed material and finish details for the bracket.
- Sixteen M6 screw and cage-nut sets give a buyer stated hardware for mounting several rack components.
- A supplied bubble level and wall hardware support the listed wood-wall, desk, or concrete-wall installation options.
- The 44lb maximum is far below the 121lb, 125lb, and 150lb capacities stated by heavy-duty alternatives.
- Its 7.56-inch depth remains a shallow open frame rather than a protected adjustable-depth enclosure for long equipment.
6. StarTech RK319WALLV — Best 3U High-Capacity Open Frame
For a heavy load in a small space, StarTech RK319WALLV is a compact 3U open frame with the highest stated capacity in this comparison, 150lb or 68kg. It is built to EIA-310 19-inch standards, arrives fully assembled with cage screws and nuts, and supports vertical wall or horizontal under-desk placement for data, AV, IT, and computer equipment.
Its 16-inch-on-center mounting holes are designed around standard wall studs. The bracket is the high-capacity compact option for equipment shallow enough for an open frame when the planned load exceeds the capacity of the 121lb or 125lb alternatives.
Decision point: Three U, 150lb capacity, and 16-inch mounting centers fit a compact high-capacity open-frame rack.For workstation networking, see our USB-C 2.5GbE adapter guide and our hardware security gateway guide.
Our TakeBuy StarTech RK319WALLV when a compact 3U open frame needs the stated 150lb capacity and 16-inch stud spacing. Choose a six-unit enclosure when protection, cable management, and greater rack space outweigh the open-frame load rating.
- A 150lb or 68kg rating is the highest stated capacity among the compact vertical rack brackets compared here.
- Three U creates a small standard 19-inch mounting area for data, AV, IT, and computer equipment.
- EIA-310 construction provides a stated rack standard for matching compatible 19-inch hardware before installation.
- Fully assembled delivery with cage screws and nuts reduces the assembly steps before mounting equipment.
- Sixteen-inch-center mounting holes align with standard wall-stud spacing stated by the product listing.
- Three U supplies less vertical capacity than the six-unit NavePoint and JINGCHENGMEI 6U wall-mount options.
- The open frame has no stated side panels, ventilation pattern, or anti-theft lock for protected equipment placement.

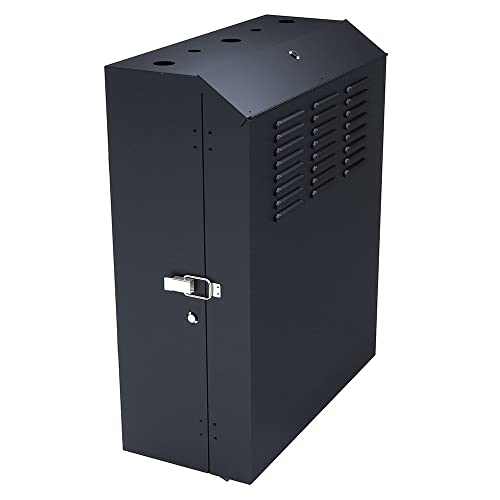

7. NavePoint 6U Vertical Enclosure — Best 6U Lockable Ventilated Enclosure
NavePoint is the deep enclosed choice, with six rack units, a stated 132.27lb capacity, and adjustable depth from 20.6 to 23.6 inches. The 16-gauge cold-rolled steel cabinet includes perforated side panels, removable and lockable sides, top and bottom cable ports, integrated cable-tie mounts, and M6 plus 12-24 threaded rails.
It suits a fixed installation that needs protection, cable organization, and room for deeper standard 19-inch equipment. The cabinet arrives assembled with hardware, but at 11.52 by 25.54 by 30.8 inches the larger cabinet needs a more deliberate wall location than a small open bracket.
For storage and network planning, see our NAS hard-drive guide and our Thunderbolt 10GbE dock guide.
Our TakeBuy NavePoint when six U, adjustable depth, ventilation, cable ports, and lockable side panels justify an enclosed cabinet. Choose an open bracket for shallow gear that needs lower visual and physical footprint.
- Six U supplies more stated vertical equipment space than every 2U, 3U, and 4U bracket in this comparison.
- A 132.27lb capacity supports a larger protected equipment group within the cabinet’s stated load rating.
- Adjustable 20.6 to 23.6-inch depth gives buyers a listed dimension range for deeper 19-inch equipment.
- Perforated side panels, top and bottom cable ports, and cable-tie mounts support airflow and cable organization.
- Removable lockable side panels provide stated physical protection absent from open-frame wall brackets.
- The larger 11.52 by 25.54 by 30.8-inch cabinet needs more wall space than a shallow open 3U or 4U bracket.
- Its 132.27lb rating remains below the 150lb capacity stated for the StarTech RK319WALLV open-frame bracket.
8. JINGCHENGMEI 6U150 — Best 6U Ready-Assembled Heavy Bracket
For standard 19-inch server, NAS, data, network, studio, and AV hardware, JINGCHENGMEI 6U150 offers six open-frame rack units with a stated 125lb capacity, 11.06-inch depth, and 2mm metal construction. It arrives fully assembled with twenty-four cage screws and nuts, plus wall screws and a bubble level.
It is the open-frame six-unit alternative when the buyer needs more rack space than a 3U or 4U bracket but does not need a 20.6-inch-deep lockable cabinet. You can place it on a wall vertically or under a desk horizontally, although the open design does not add enclosure security.
Buy JINGCHENGMEI 6U150 for a ready-assembled six-unit open frame with 125lb capacity and 11.06-inch depth. Choose NavePoint when deeper hardware, cable ports, ventilation panels, and locks are necessary.
- Six U gives a larger equipment group the stated rack space unavailable in the compact 2U through 4U brackets.
- A 125lb rating provides a concrete loading boundary for standard 19-inch network, NAS, AV, or server hardware.
- The 11.06-inch depth offers more room than the 7.56-inch 4U brackets while retaining an open-frame format.
- Twenty-four cage screws and nuts arrive with the fully assembled rack for mounting multiple equipment positions.
- Two-millimeter metal and powder coating give a stated structural material and finish for a long-term wall installation.
- The open six-unit frame has no lockable panels or integrated cable ports like the deeper NavePoint enclosure.
- An 11.06-inch depth may not fit equipment that needs NavePoint’s stated 20.6 to 23.6-inch adjustable depth.
Buying Guide

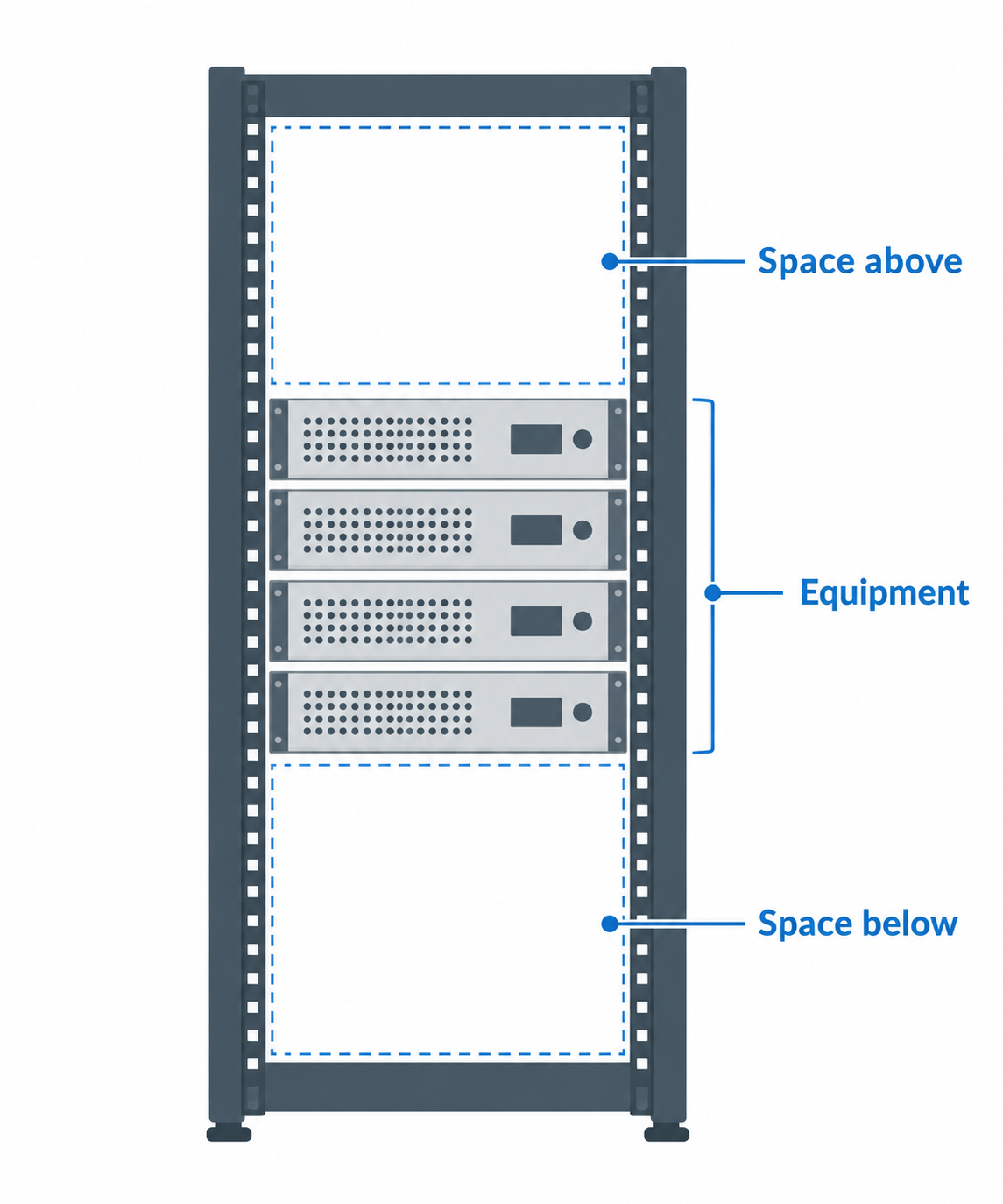

Count rack units around the installed equipment
Choose two or three U for a narrow equipment group. Tecmojo’s 2U enclosure and the STANDOPIA and StarTech 3U brackets fit a switch, patch panel, router, or similar compact group. A smaller rack saves wall area but leaves less expansion room.
Choose four or six U when the device stack needs more vertical positions. StarTech, JINGCHENGMEI, and Mofangtech offer 4U brackets, while NavePoint and JINGCHENGMEI 6U150 provide six units. Count the actual hardware and allow for cable access before treating a rack-unit number as sufficient.

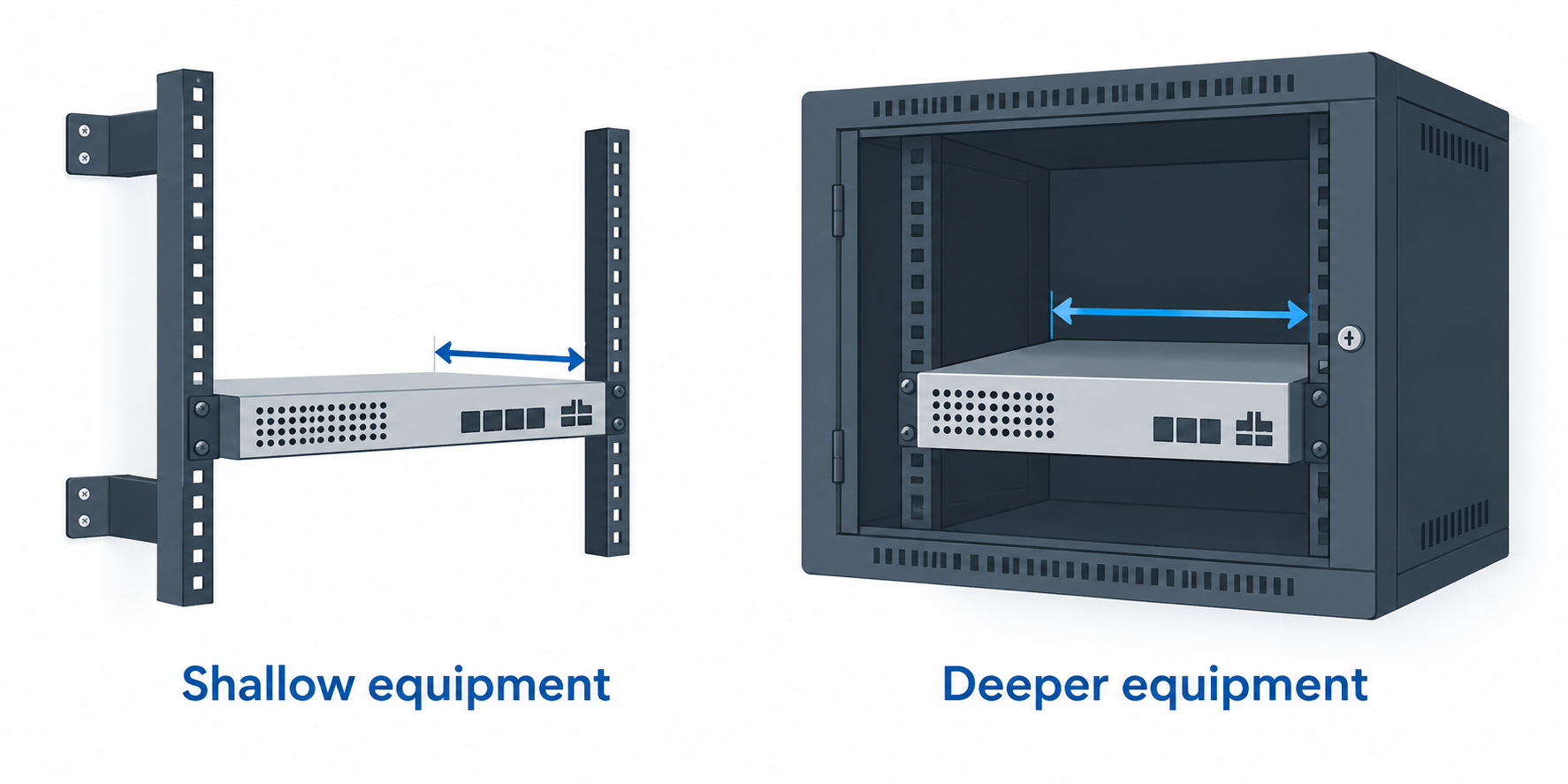

Match equipment depth to the mounting form
For shallow gear, a 7.56-inch bracket depth can be an efficient fit. JINGCHENGMEI 4U150 and Mofangtech both list 7.56 inches, so you can use that depth to screen patch panels and shallow switches. Verify rear connectors and cable bends, not only the chassis body depth.
For deeper equipment, NavePoint’s 20.6 to 23.6-inch adjustable depth is the relevant specification. Its enclosure is not a drop-in substitute for a shallow vertical bracket, but it gives longer standard 19-inch hardware more stated room, along with cable ports and panel protection.
Treat capacity as a wall-and-equipment calculation
Compare the stated rack limit and the actual equipment total together. Mofangtech states 44lb, Tecmojo 60lb, most compact brackets 121 to 125lb, NavePoint 132.27lb, and StarTech RK319WALLV 150lb. Do not select by rack units alone when a UPS or dense server changes the load.
Also inspect the planned wall structure and mounting spacing. STANDOPIA and StarTech RK319WALLV specify 16-inch mounting centers, while STANDOPIA names wall studs. A rack’s listed capacity does not replace suitable installation into the wall structure that carries the intended equipment.
Choose open access or enclosed protection deliberately
Pick an open bracket when front and rear service access and small footprint are the priorities. You can reach switches, patch panels, and similar shallow equipment easily on the 3U and 4U brackets. They do not state side panels or locks.
Pick an enclosure when ventilation, cable routing, and physical protection are part of the installation. Tecmojo adds four-sided vents and cable holes at 2U, while NavePoint adds perforated lockable panels and top and bottom cable ports at 6U. Choose the enclosure depth and capacity that match the hardware.
Plan orientation and supplied mounting hardware
Many brackets support vertical wall or horizontal under-desk mounting. JINGCHENGMEI 4U150, STANDOPIA, Mofangtech, StarTech RK319WALLV, and JINGCHENGMEI 6U150 state both orientations. Select the form that keeps connectors accessible and protects the available floor space.
Review the supplied cage nuts, screws, and wall hardware before installation day. StarTech RK419WALLV-N includes M5 hardware, STANDOPIA includes M6 hardware, and JINGCHENGMEI 6U150 includes twenty-four cage-screw sets. The hardware helps, but the buyer must still match it to the wall material and equipment rails.
FAQ
What is a vertical wall-mount rack?
A vertical wall-mount rack is a 19-inch equipment mount that uses wall or under-desk space instead of a floor cabinet. The brackets here hold hardware vertically on a wall or horizontally under a desk, depending on the model’s stated orientation.
The form suits compact networking, AV, studio, and IT gear. A 2U, 3U, 4U, or 6U rating tells you the listed vertical rack space, but depth, capacity, wall structure, and equipment connectors still determine whether the installation works.
How many rack units should I buy?
Buy enough U for the equipment you will install plus reasonable physical access. A 2U Tecmojo enclosure can fit a small protected group, while 4U brackets fit larger switch or patch-panel combinations. Six U leaves more vertical space for a growing stack.
Do not buy extra U without considering depth and wall size. NavePoint’s six-unit enclosure is 25.54 inches long and 30.8 inches high, so it needs more installation space than a small 3U open frame. Choose the smallest rack that safely fits the actual plan.
Can a wall rack hold a UPS?
It can only hold one when the UPS weight, depth, mounting pattern, and the wall installation all fit the rack’s stated limits. JINGCHENGMEI 4U150 names UPS units among compatible equipment and states 125lb, while Mofangtech states only 44lb.
Weight alone is not enough. StarTech RK319WALLV states 150lb and 16-inch mounting centers, but the wall structure and installed hardware still need to support that load. Check the specific equipment and mounting instructions before loading a heavy power device.
Do I need an enclosed rack?
You need one when the installation benefits from stated ventilation, cable routing, or physical protection. Tecmojo has four-sided vents and cable holes, while NavePoint adds perforated lockable side panels and top and bottom cable ports.
An open bracket can be better for shallow gear that needs frequent access. Open 3U and 4U brackets keep the footprint small and equipment visible, but they do not provide the listed locks or enclosure panels of the cabinet models.
What wall mounting details matter most?
The most important details are the wall material, stud position, included hardware, and equipment load. STANDOPIA and StarTech RK319WALLV use stated 16-inch mounting centers, while several other products include wall screws or a bubble level.
Also plan access after installation. Cable direction, rear connector clearance, and rack orientation affect the usable setup, even when the 19-inch rack standard and weight capacity look correct. Mount the rack where service access and cable paths stay practical.
Bottom Line
StarTech RK319WALLV is the compact high-capacity 3U pick, JINGCHENGMEI 4U150 is a ready-assembled shallow 4U bracket, and NavePoint is the deeper lockable six-unit enclosure. Select by rack units, depth, stated capacity, wall structure, ventilation, protection, and the actual equipment you will mount.
