The Short Version
A PCB preheater warms the underside of a board before SMD removal, BGA work, or other repair operations. The bench then uses one controlled, board-level heat source in place of repeated point heating. The right choice depends on board size, heating method, stated temperature range, and whether a compact plate or a larger infrared station fits the repair workflow.
Choose the JUSTHERE T8280 for its 280 by 270mm infrared heating area. Choose the Hakko FR830-02 when ESD-safe convective preheating and a stated 150 to 300 F control range fit the bench. The YunFanSSTek 853A is the compact choice, with a 4.72 by 4.72-inch plate and an adjustable board holder.
The picks here are dedicated preheaters, not general soldering irons or hot-air stations. You still need the correct tools, process controls, and board handling for the job. Confirm power requirements, the board footprint, and the stated temperature range before buying.
Quick Picks
- Best large infrared work: JUSTHERE T8280 for a 280 by 270mm heating area.
- Best compact held-board work: YunFanSSTek 853A for its adjustable holder and 50 to 400 C control.
- Best convective preheating: Hakko FR830-02 for ESD-safe closed-loop heating.
- Best 200mm multi-point plate: Kosmeiner SHP1010B for its 200 by 200mm area.
How We Picked
Every product in this guide is a PCB preheater, infrared preheating station, or convective preheater with adjustable temperature control. The six picks span compact 4.72 by 4.72-inch plates, larger 200 by 200mm plates, a 280 by 270mm infrared area, and Hakko’s convective design. Two hot plates that the existing small-board rework hot-plate guide already covers are left out here.
A preheater belongs beside a solder fume extractor, digital microscope, ESD wrist strap, PCB holder, and desoldering pump. The bench needs enough open space to load a board safely and keep cables clear of the heated work area.
PCB Preheater Stations Compared
| Image | Product | Details | Check Price |
|---|---|---|---|
 | Soiiw 946C+ | Best fit: Large 200 mm plate work Power: 850W Heating area: 200 x 200 mm Temperature: 30 to 400 C Control: CPU constant-temperature control | Check Price on Amazon |
 | YunFanSSTek 853A | Best fit: Compact held-board work Power: 450W Plate: 4.72 x 4.72 in Temperature: 50 to 400 C Control: Closed-loop PID | Check Price on Amazon |
 | JUSTHERE T8280 | Best fit: Large infrared preheat area Power: 1600W Heating area: 280 x 270 mm Temperature: 0 to 450 C Heating: Infrared PID | Check Price on Amazon |
 | VQP 853A | Best fit: Compact infrared station Power: 450W Plate: 4.72 x 4.72 in Temperature: 50 to 400 C Control: Closed-loop PID | Check Price on Amazon |
 | Kosmeiner SHP1010B | Best fit: 200 mm multi-point heating Power: 850W Heating area: 200 x 200 mm Temperature: 30 to 400 C Control: Digital microcomputer | Check Price on Amazon |
 | Hakko FR830-02 | Best fit: Convective preheating Heating: Convective Temperature: 150 to 300 F Safety: ESD-safe design Control: Closed-loop temperature control | Check Price on Amazon |
1. Soiiw 946C+ — Best for Large 200 mm Plate Work
If your boards or component groups are too big for a compact plate, the Soiiw 946C+ is a simple large-plate choice with a stated 200 by 200mm heating surface. Its listing identifies an 850W aluminum heating plate, a 30 to 400 C control range, and CPU-based constant-temperature control. That combination suits larger boards or several smaller components positioned on one plate.
The listing names PCB removal, SMD work, display work, and other constant-temperature tasks. Its cooling-hole design is a practical physical feature, but what decides the purchase is whether the 200mm plate fits the boards you repair.
Pros
- The stated 200 by 200mm plate gives larger boards more support area than compact 853A stations.
- Its 850W aluminum plate suits a bench that needs a larger heating surface.
- The listed 30 to 400 C range covers a broad set of stated preheat and constant-temperature tasks.
Cons
- A 200mm plate uses more bench space than the compact 4.72-inch stations in this guide.
- The listing does not describe an adjustable board holder, so you need your own workholding plan.
2. YunFanSSTek 853A — Best for Compact Held-Board Work
The YunFanSSTek 853A is the compact preheater for boards that fit its stated 4.72 by 4.72-inch stainless plate. It combines 450W power, 50 to 400 C control, a real-time temperature display, and closed-loop PID control in a smaller station.
The four sliding thumb-screws are the main reason to pick it. The listing says they hold boards up to the plate area flat and immobile, so you get workholding built in instead of a separate support for every compact board.
Pros
- The 4.72 by 4.72-inch plate suits compact board work without dedicating a large bench footprint.
- The listing states closed-loop PID control and a real-time display for temperature feedback.
- Four adjustable thumb-screws are a listed way to hold boards flat during preheat work.
Cons
- The 450W compact design has less stated power than the 850W and 1600W alternatives.
- Its plate area limits the board size that can be held and heated in one setup.
3. JUSTHERE T8280 — Best for Large Infrared Work
When a compact plate cannot cover the board or preheating area you need, the JUSTHERE T8280 is the direct fit. It is the largest stated infrared option here and lists 1600W power, a 280 by 270mm heating range, and a 0 to 450 C temperature range.
The listing describes infrared heating with PID temperature control and compatibility with handheld infrared soldering equipment. It also states that the heating method is intended to avoid moving small PCB components, which is relevant when the board has dense surface-mounted parts.
Pros
- Its 280 by 270mm area is the broadest stated heating area in this six-product comparison.
- The 1600W rating suits buyers seeking a high-power infrared preheating station.
- The listed 0 to 450 C range reaches higher than the 400 C plate models.
Cons
- The 280 by 270mm footprint requires substantially more bench space than a compact preheater.
- Infrared preheating changes the workflow, so confirm the board and process suit that heating method.
4. VQP 853A — Best for Compact Infrared Preheating
The VQP 853A is another compact 450W station, but its listing emphasizes infrared ceramic heating elements and a 50 to 400 C digital range. It is a fit for a buyer who wants an anti-static compact plate for SMD and BGA rework rather than a broad 200mm work surface.
Its listed 4.72 by 4.72-inch stainless plate and four thumb-screw holding assembly keep the work to smaller workpieces. The compact format gives a clear board-size limit and can suit a repair bench with limited space.
Pros
- Infrared ceramic elements and closed-loop PID control are stated for controlled compact preheating.
- The 50 to 400 C digital range gives a defined adjustment window for repair tasks.
- Four thumb-screws provide an adjustable holding assembly for boards within the plate area.
Cons
- Its 4.72-inch plate cannot replace a large-area preheater for broad boards.
- The 450W rating is lower than the 850W and 1600W stations when more area is needed.

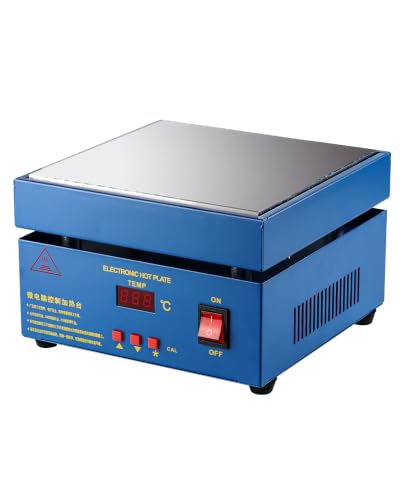

5. Kosmeiner SHP1010B — Best for 200 mm Multi-Point Heating
The Kosmeiner SHP1010B is the digital 850W alternative for a stated 200 by 200mm plate. Its listing highlights multi-point heating, a temperature sensor, microcomputer control, and a 30 to 400 C adjustable range. The combination suits buyers who want a larger plate with digital feedback.
It is intended for PCB rework and SMD soldering, while the aluminum-alloy plate is described as distributing heat evenly. The listing also calls out side ventilation and a heat-resistant edge, which are physical features for longer repair sessions.
Pros
- A 200 by 200mm area supports multi-point heating across a larger board or component group.
- The 850W rating matches the Soiiw plate for buyers comparing stated power.
- A digital display, temperature sensor, and microcomputer control are stated for feedback and adjustment.
Cons
- Its 200mm plate occupies more repair-bench area than the compact 853A choices.
- The listing’s 220V designation means you must verify local power compatibility before buying.
6. Hakko FR830-02 — Best for Convective Preheating
The Hakko FR830-02 is the distinct choice because it is a convective preheater rather than a plate or infrared unit. Hakko states that it delivers consistent heat to the bottom of printed circuit boards, is ESD-safe by design, and uses closed-loop control from 150 to 300 F.
It fits a bench that specifically wants stated convective heating and lead-free assembly support. Its range is in Fahrenheit, so it cannot be compared directly with the Celsius plate listings. Start with the process range you need instead of comparing watts alone.
Pros
- Convective heating distinguishes this model from the plate and infrared options in the guide.
- The stated 150 to 300 F closed-loop range gives a defined convective preheating window.
- Hakko identifies the unit as ESD-safe, which is relevant around sensitive circuit boards.
Cons
- Its 150 to 300 F range is narrower than the broad Celsius ranges listed for the plate stations.
- The listing gives no heating-area measurement, so board-fit needs confirmation before purchase.
Buying Guide: Choosing a PCB Preheater
Match the heating area to the board
Start with the largest board footprint you regularly preheat. The YunFanSSTek and VQP stations list 4.72 by 4.72-inch plates, the Soiiw and Kosmeiner list 200 by 200mm plates, and the T8280 lists 280 by 270mm. A larger plate does not make every repair easier when it consumes the working space needed for tools and board handling.
Choose the smallest area that safely supports the board and your workholding method. Bench clearance and board support should come before the extra coverage a larger infrared station gives wide boards and multi-point work.
Choose the heating method deliberately
Plate, infrared, and convective preheaters do not work the same way on the bench. The T8280 and VQP describe infrared heating, while the Hakko FR830-02 is a convective preheater. The Soiiw and Kosmeiner listings describe heated plates with adjustable temperature control.
Pick the method that matches the documented process and board requirements. Heating method is a workflow choice, not a universal performance ranking, and every board still needs suitable handling and temperature control.
Read the stated temperature range with the process
A temperature range marks the limit of the machine. It is not a process setting. The compact 853A stations list 50 to 400 C, the T8280 lists 0 to 450 C, and Hakko lists 150 to 300 F. The figures show the machine’s listed controls and are not an instruction to use the highest setting.
Setpoints should follow the repair process, board construction, and component guidance. Repeatable control around a chosen process is the benefit of a digital display or closed-loop system, and it does not replace board-specific care.
Plan workholding and bench clearance
The YunFanSSTek and VQP models include four sliding thumb-screws for workholding. Other preheaters may need a separate board support, especially when the board is wide or has uneven components. When the board is secure, it’s easier to keep tools and hands clear of the heated area.
Leave space for the full station, cable routing, and the board before choosing an 850W or 1600W unit. Keep clear board, tool, and cable paths, so the preheater is part of an organized repair surface and not an obstacle between the microscope, fume capture, and the board.
Check power and electrical compatibility first
The VQP is listed as 110V, while the Kosmeiner listing names 220V. The two voltages are a purchase-critical difference even when other specifications look similar, e.g., a 200mm plate or a 400 C range. Verify local mains compatibility before ordering any station.
A power rating is also only one part of the equipment’s specification. An 850W plate, a 450W compact station, and a 1600W infrared unit have different areas and heating methods, so the board size and process should lead the decision.
Frequently Asked Questions
What does a PCB preheater do?
A PCB preheater brings controlled heat to a board before other rework operations. The listings for the picks here describe uses including SMD work, BGA work, soldering, and board repair.
It is not a substitute for process knowledge or the correct component-specific tools. Use the preheater’s stated controls and the board’s requirements to plan the operation.
Is a bigger heating plate always better?
No. A 280 by 270mm area can suit a large board, while a 4.72-inch plate can be a better fit for compact recurring work.
A larger station needs more bench space and clearance. Choose the area that supports the board without making the rest of the repair setup harder to use.
Why choose infrared rather than a plate?
Choose infrared when the board and process call for it. The T8280 and VQP are the infrared models here, and the T8280 listing specifically describes infrared heating with PID temperature control.
The correct choice depends on the board and process rather than a general hierarchy. Compare the stated heating area, temperature range, workholding, and space requirements before buying.
Is the Hakko FR830-02 a hot plate?
No. Hakko describes the FR830-02 as a convective preheater that delivers heat to the bottom of printed circuit boards.
The Hakko is a distinct category from the plate and infrared products in this guide, with a stated 150 to 300 F range and an ESD-safe design. Confirm that convective preheating fits the intended rework process.
Do I need a board holder?
A board holder can help keep a compact workpiece flat and immobile. The YunFanSSTek and VQP 853A listings include four adjustable thumb-screws for holding the board.
Larger plates and different board shapes may require another support arrangement. Plan workholding before heating so the board, tools, and cables stay clear of the active surface.
Bottom Line
Choose the JUSTHERE T8280 for the largest listed infrared heating area, the YunFanSSTek 853A for compact board holding, or the Hakko FR830-02 for its distinct ESD-safe convective design.
