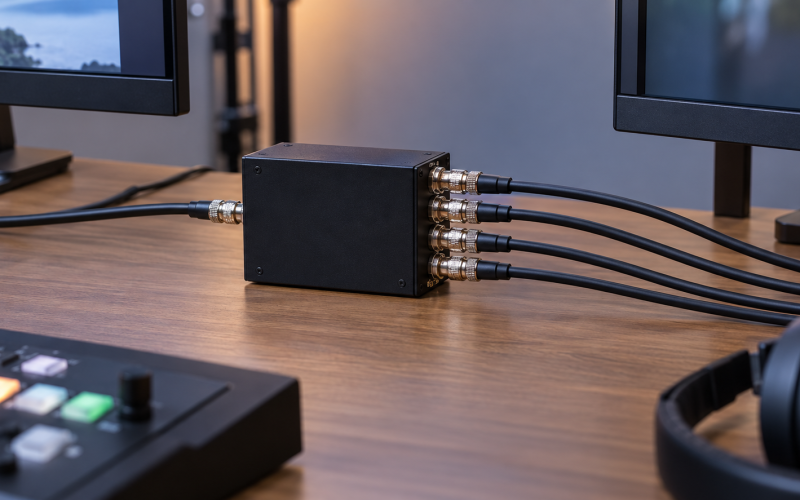

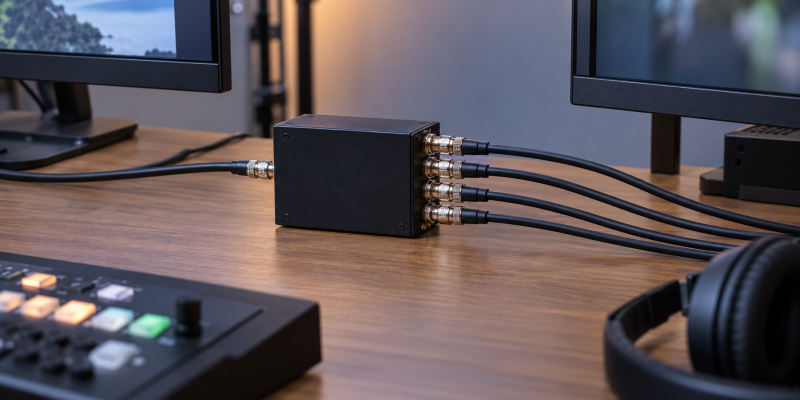

An SDI distribution amplifier takes one production feed and sends regenerated copies to several monitors, recorders, converters, or switchers. It is the right tool when every destination needs the same source. It is not a matrix router, multiviewer, switcher, or simple passive BNC splitter.
The eight products below cover four, eight, and nine-output SDI distribution, plus one SDI and HDMI cross-conversion unit. Choose by output count, highest SDI rate, reclocking and equalization, tested cable distance, power input, mounting needs, and whether any destination requires HDMI instead of SDI.
Count every destination and spare output, match the SDI rate and coaxial cable, then choose a reclocking distribution amplifier with enough power and mounting flexibility for the production environment.Top 8 SDI Distribution Amplifiers Compared
| Image | Product | Details | Check Price |
|---|---|---|---|
 | AVMATRIX SD1141 | Layout: 1 input, 4 outputs Rates: SD, HD, 3G-SDI Maximum: 1080p60 Signal: Reclocked outputs; 120 m stated at 3G | Check Price on Amazon |
 | AVMATRIX SD1191-X | Layout: 1 input, 9 outputs Rates: SD, HD, 3G-SDI Maximum: 1080p60 Signal: Equalization and reclocking | Check Price on Amazon |
 | Blackmagic Mini Converter SDI Distribution | Layout: 1 input, 8 outputs Rates: SD, HD, 3G-SDI, ASI Signal: 8 reclocked outputs Data: Embedded audio and ancillary data | Check Price on Amazon |
 | AVMATRIX SD2080 | Inputs: 1 HDMI, 1 SDI Outputs: 4 HDMI, 4 SDI Maximum: 1080p60 Functions: Cross-conversion, scaling, reclocking | Check Price on Amazon |
 | JOMOCARE 3G-SDI 1x4 | Layout: 1 input, 4 outputs Rates: SD, HD, 3G-SDI Maximum: 1080p60 Power: 5 to 12V DC | Check Price on Amazon |
 | J-Tech Digital JTDSDI0104 | Layout: 1 input, 4 outputs Rates: SD, HD, 3G-SDI Distance: 330 ft stated at 3G with Belden 1694A Power: 5 to 30V DC | Check Price on Amazon |
 | HDSUNWSTD 1x8 SDI Splitter | Layout: 1 input, 8 outputs Rates: SD, HD, 3G-SDI stated Connectors: BNC Power: US supply included | Check Price on Amazon |
 | Luocute 1x4 SDI Splitter | Layout: 1 input, 4 outputs Rates: SD, HD, 3G-SDI Maximum: 1080p60 Build: Aluminum housing, ESD protection | Check Price on Amazon |
1. AVMATRIX SD1141 — Best Compact Four-Output DA
The AVMATRIX SD1141 is a compact one-input, four-output distribution amplifier for a small production desk, control room, or mobile kit. It automatically detects SD, HD, and 3G-SDI signals and supports video up to 1080p60. Outputs two and four also support DVB-ASI according to the listing.
All four outputs are reclocked. Reclocking regenerates timing before each branch leaves the unit, so the SD1141 is more suitable for multiple cable runs than a passive split. AVMATRIX states transmission distances up to 400 meters for SD, 200 meters for HD, and 120 meters for 3G-SDI under suitable conditions.
A detachable wall-mount bracket lets you mount the compact box behind a monitor wall, under furniture, or inside an equipment area instead of on the main desk. The supplied record does not state the DC input range, connector locking arrangement, redundant power, or rack-mount density, so those details need checking for permanent installation.
Choose the SD1141 when one 1080p60-or-lower SDI source needs four reclocked outputs in a compact wall-mountable box. Our TakeBuy the AVMATRIX SD1141 for a compact four-destination production path that needs automatic SD, HD, or 3G-SDI detection and stated long-run reclocking. Its wall bracket helps with discreet installation. Move to the SD1191-X when four outputs leave no room for recorders, scopes, or a backup feed.
- One input and four reclocked SDI outputs.
- Supports SD, HD, and 3G-SDI up to 1080p60.
- Wall-mount bracket and stated 120 m 3G-SDI distance.
- Only four outputs for larger production systems.
- DC input range is not stated in the supplied record.
2. AVMATRIX SD1191-X — Best Nine-Output Distribution Amplifier
The SD1191-X expands the AVMATRIX design to one input and nine outputs, the highest output count in this group. It automatically detects SD, HD, and 3G-SDI signals up to 1080p60 at 2.97 Gbps. The outputs also state DVB-ASI support, so the unit is relevant beyond conventional studio video distribution.
Each output includes reclocking, while the input path uses equalization. AVMATRIX says the unit regenerates the incoming signal, reduces jitter, and improves the SDI eye pattern before downstream processing. Its stated distances match the smaller SD1141: up to 400 meters for SD, 200 meters for HD, and 120 meters for 3G-SDI.
Nine outputs can feed a main monitor wall, engineering display, recorder, encoder, confidence monitor, and spare paths from one source. The detachable wall bracket supports installation outside the viewing area. A 12V power adapter is included, but redundant power is not stated.
Nine outputs provide useful headroom, but the SD1191-X is a one-source fan-out device rather than a router that selects different sources per destination. Our TakeBuy the AVMATRIX SD1191-X when one SDI feed must reach more than eight destinations or the design needs a ready spare output. Reclocking, equalization, automatic rate detection, and clear distance claims fit a larger monitor wall. Choose a router instead if different destinations need independent source selection.
- Largest count here at nine SDI outputs.
- Reclocking and equalization on SD, HD, and 3G-SDI.
- Includes 12V power adapter and wall bracket.
- Distributes only one selected source.
- No redundant power input is stated.
3. Blackmagic Design Mini Converter SDI Distribution — Best Overall Eight-Output DA
Blackmagic Design’s Mini Converter provides one automatically switching SD, HD, or 3G-SDI input and eight reclocked outputs. Eight branches cover a substantial multi-monitor production without the ninth port or larger count of the AVMATRIX SD1191-X. The listing also states ASI handling, embedded audio, and ancillary-data support.
The supplied format list includes NTSC, PAL, 720p50, 720p59.94, 1080i50, 1080i59.94, and 1080psf23.98 or 24, among others. The product record says new formats can be added by USB. Format flexibility is a key reason to select it, though current software and supported standards should be confirmed for the exact hardware revision.
The listing also mentions a redundant SDI input as a common Mini Converter feature for mission-critical broadcast and live-event use. Because the same record describes an auto-switching input in the singular, verify the exact unit’s physical connectors and failover behavior before designing redundancy around it.
The Mini Converter is the best general eight-output choice for a production team that values broad format support, reclocking, embedded audio, ancillary data, and a familiar converter ecosystem. The supplied record does not state cable-distance figures, a wall bracket, or a wide-voltage DC range.
Buy the Blackmagic Design Mini Converter SDI Distribution when eight outputs cover the production and broad format handling matters more than published cable-distance figures. It is the strongest all-around DA in this group. Confirm the exact hardware revision and redundant-input behavior before relying on automatic failover.
- Eight reclocked SDI outputs.
- Supports SD, HD, 3G-SDI, ASI, ancillary data, and embedded audio.
- Broad stated video-format list with USB update path.
- Cable-distance figures are not supplied.
- Exact redundant-input behavior needs confirmation.
4. AVMATRIX SD2080 — Best SDI and HDMI Cross-Conversion DA
The AVMATRIX SD2080 is the outlier in this group because it combines distribution with conversion. It has one HDMI input and one 3G-SDI input, plus four SDI and four HDMI outputs. The selected path can convert SDI to HDMI or HDMI to SDI up to 1080p60 while feeding several downstream devices.
The manufacturer listing also describes same-format splitting: one SD, HD, or 3G-SDI signal to four SDI outputs, or one HDMI signal to four HDMI outputs. DIP switches select the input and conversion behavior. Treat it as a cross-converter and splitter for one selected source, not a two-source matrix with independent routing on every output.
AVMATRIX states that SDI outputs include equalization and reclocking. The unit automatically detects input signals and specifies multi-frame-rate up and down scaling. Scaling is a material difference from a pure DA, which normally distributes the incoming format unchanged, so verify the desired output format and any processing delay in the complete workflow.
AVMATRIX includes a 12V 2A supply and two mounting brackets. The SD2080 makes sense when a production mixes SDI monitors and HDMI field monitors for confidence viewing. A pure SDI facility gets more SDI branches from the SD1191-X or Blackmagic units without paying for unused HDMI conversion.
Choose the SD2080 only when the workflow needs SDI and HDMI outputs or cross-conversion, because its eight physical outputs are split across two connector types. Our TakeBuy the AVMATRIX SD2080 for a mixed-format production that must distribute one selected HDMI or SDI source to both connector families. Its conversion, scaling, reclocking, and four-plus-four output arrangement solve a different problem from a pure eight-output SDI DA. Confirm the required DIP-switch mode before a live event.
- Four SDI and four HDMI outputs.
- SDI-to-HDMI and HDMI-to-SDI conversion up to 1080p60.
- SDI equalization, reclocking, and stated scaling.
- Only four outputs use each connector type.
- Not an independent two-source matrix router.

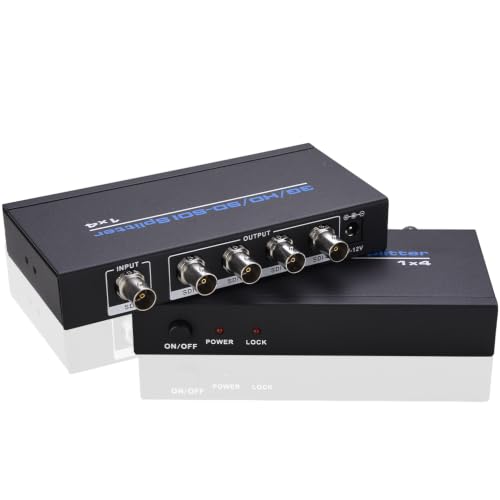

5. JOMOCARE 3G-SDI 1×4 Splitter — Best Compact Wide-Input DA
The JOMOCARE unit provides one SDI input and four simultaneous BNC outputs in a compact 87 x 147 x 30 mm enclosure. It supports 270 Mbps SD-SDI, 1.485 Gbps HD-SDI, and 2.97 Gbps 3G-SDI with resolutions up to 1920 x 1080 at 60Hz.
Built-in cable equalization, clock recovery, and signal drive regenerate the feed for the four branches. JOMOCARE states distances up to 984 feet for SD, 656 feet for HD, and 328 feet for 3G-SDI. Those figures depend on suitable coaxial cable, connectors, source quality, and installation conditions.
The device automatically detects the SDI signal and accepts a wide 5 to 12V DC power input. That power range is useful for mobile or integrated systems where a regulated supply other than 12V may be available. The listing does not identify an included power adapter, mounting bracket, ASI support, or rack option.
JOMOCARE combines four reclocked outputs, compact dimensions, and a 5 to 12V DC range for small mobile or installed systems. Our TakeBuy the JOMOCARE 1×4 when a compact production box needs four 3G-SDI outputs and flexible 5 to 12V DC input. Its stated equalization and distance limits cover common monitor and recorder runs. Verify the included power accessories because the supplied record names the input range but not the package power supply.
- Four outputs with reclocking and equalization.
- Supports SD, HD, and 3G-SDI up to 1080p60.
- Wide 5 to 12V DC input and compact enclosure.
- Only four output branches.
- Included power adapter is not stated.
6. J-Tech Digital JTDSDI0104 — Best Wide-Voltage Four-Output DA
The J-Tech Digital JTDSDI0104 distributes one SDI input to four outputs and automatically detects SD-SDI at 270 Mbps, HD-SDI at 1.485 Gbps, and 3G-SDI at 2.97 Gbps. Equalization and reclocking support long branches rather than merely duplicating the electrical signal.
Using Belden 1694A cable, J-Tech states combined input and output distances up to 1,320 feet for SD-SDI, 660 feet for HD-SDI, and 330 feet for 3G-SDI. The named cable type makes these figures more actionable than an unqualified distance claim, though actual connectors and installation quality still matter.
Its distinguishing feature is a 5 to 30V DC input, the broadest power range in this group. The wide range fits vehicles, field rigs, and installed systems with different regulated DC sources. The device has a durable metal enclosure, plug-and-play detection, a one-year warranty, and stated lifetime technical support.
The 5 to 30V DC range supports varied project power, but every supply still needs correct polarity, regulation, connector fit, and adequate current. Our TakeBuy the J-Tech Digital JTDSDI0104 when a four-output DA must integrate with a wide 5 to 30V DC power environment. It also provides clear Belden 1694A distance figures and automatic SDI detection. AVMATRIX offers more outputs when power flexibility is less important.
- Wide 5 to 30V DC input.
- Four equalized and reclocked SDI outputs.
- Distance figures tied to Belden 1694A cable.
- Only four outputs.
- No wall or rack bracket is stated.
7. HDSUNWSTD 1×8 SDI Splitter — Best Basic Eight-Output Pick
The HDSUNWSTD unit offers a simple one-input, eight-output layout for SD, HD, and 3G-SDI systems. Its rear connection count is direct: one SDI BNC input and eight SDI BNC outputs. A US power supply is included.
The listing names broadcast rooms, nonlinear editing, CCTV systems, security monitoring, and training rooms as use cases. Eight outputs can serve a full monitor row or a mixture of displays and video recorders without the HDMI branches of the SD2080.
However, the supplied record does not state maximum resolution or frame rate, data rates, reclocking, equalization, cable distances, automatic detection, power-input range, embedded audio support, ASI, enclosure material, or mounting accessories. Those missing engineering details make the HDSUNWSTD a basic eight-output option rather than a strong choice for a documented long-run system.
Buy the HDSUNWSTD 1×8 only after the current exact offer confirms the SDI rate, reclocking, equalization, and distance required by the installation. Its appeal is a simple eight-output count with a US power supply. Blackmagic and AVMATRIX provide much clearer production specifications.
- One input and eight SDI outputs.
- States SD, HD, and 3G-SDI support.
- US power supply included.
- No reclocking, equalization, or distance figures stated.
- Maximum resolution and frame rate are not supplied.

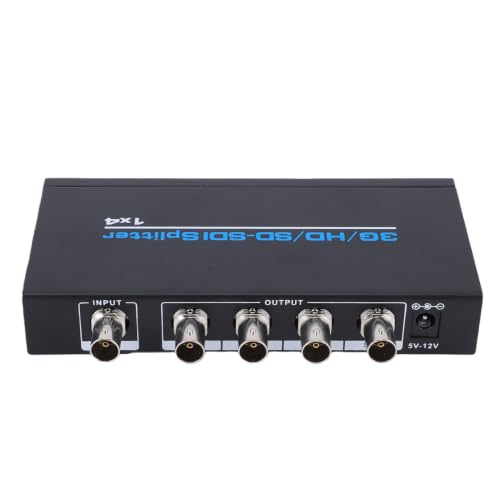

8. Luocute 1×4 SDI Splitter — Best Four-Output DA with ESD Protection
The Luocute splitter takes one SDI input and feeds four BNC female outputs. It supports SD, HD, and 3G-SDI equipment and resolutions up to 1920 x 1080 at 60Hz. Automatic format detection reduces setup work when sources change between supported rates.
Cable equalization and clock recovery allow the unit to operate as a repeater. With 1694A coaxial cable, the listing states distances up to 300 meters for SD-SDI, 200 meters for HD-SDI, and 100 meters for the highest listed path. The relevant bullet omits the rate label after 100 meters, but the surrounding product description identifies 3G-SDI compatibility, so treat 100 meters as the conservative 3G planning figure and verify it before deployment.
An aluminum-alloy housing dissipates heat, and built-in ESD protection helps guard the device against electrostatic discharge. Those physical details distinguish it from four-output boxes whose records focus only on signal rates. The supplied record does not state its DC input range, included adapter, or mounting hardware.
Buy the Luocute 1×4 when four 1080p60 SDI outputs, stated long-run regeneration, and ESD protection fit the installation. Its aluminum enclosure suits production handling. Confirm the 3G distance and included power accessories because the supplied record is incomplete on those two details.
- Four outputs with equalization and clock recovery.
- Supports up to 1080p60 and automatic format detection.
- Aluminum housing with ESD protection.
- Power input and included adapter are not stated.
- The 100 m distance bullet omits its rate label.
Buying Guide

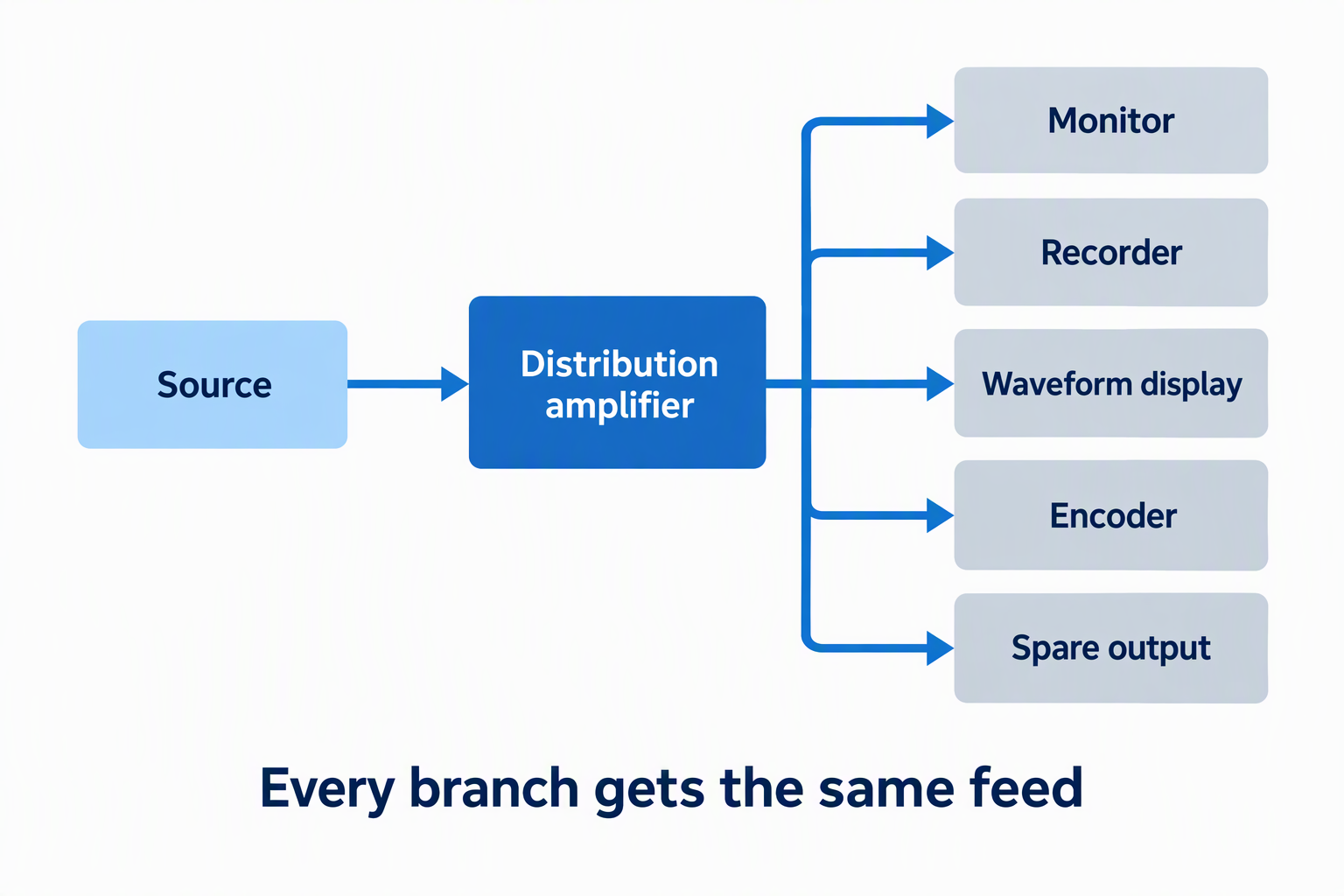

1. Count destinations and reserve outputs
List every monitor, recorder, waveform display, encoder, converter, and backup destination that needs the same source. Output count should include at least one practical spare when the system may grow or needs a quick replacement path. Four-output units suit compact kits, while Blackmagic and HDSUNWSTD offer eight and AVMATRIX offers nine.
A DA sends the same feed to every branch. Independent source selection requires an SDI router or production switcher, not more DA outputs. Our guides to video switchers and SDI switchers cover those different workflows.
2. Match SD, HD, or 3G-SDI rate
Every product here states SD, HD, and 3G-SDI compatibility, but documentation depth varies. 3G-SDI support up to 1080p60 is clearly stated for AVMATRIX, JOMOCARE, and Luocute. Blackmagic provides a broad named format list.
Do not infer 6G or 12G-SDI support from a BNC connector. A 3G distribution amplifier does not carry an unsupported 4K SDI rate merely because the cable and source can. For higher-rate conversion and monitoring, see our SDI converters and production monitors.
3. Require reclocking for long or critical branches
Reclocking restores signal timing before the DA drives each output. AVMATRIX, Blackmagic, JOMOCARE, J-Tech Digital, and Luocute explicitly state reclocking or clock recovery. Equalization compensates for loss on the incoming coaxial run.
HDSUNWSTD does not state either feature in the supplied record. Do not assume that a powered one-to-eight box provides documented regeneration. For a monitor wall or recording chain where failure matters, choose a unit with explicit reclocking and equalization specifications.
4. Treat cable-distance figures as system conditions
Distance depends on SDI rate, coax type, connectors, source output, receiver sensitivity, routing, and installation quality. Higher-rate 3G-SDI has shorter stated runs than HD or SD on every detailed listing here. J-Tech ties its figures to Belden 1694A, and Luocute also names 1694A.
Use the stated distance as a planning ceiling rather than a promise for unknown cable. Leave margin in a live production design and test the full installed route at the actual format. Our SDI cable guide covers the physical link that the DA must drive.
5. Plan power for studio, vehicle, or field use
Fixed studio boxes often arrive with a dedicated 12V adapter. AVMATRIX SD1191-X and SD2080 explicitly include 12V supplies, while HDSUNWSTD states a US power supply. JOMOCARE accepts 5 to 12V, and J-Tech accepts 5 to 30V.
Wide input range does not make every supply safe. Confirm voltage, polarity, connector size, current capacity, grounding, and regulation before connecting project power. Redundant power is not stated for these devices, so critical systems may need an upstream power strategy.

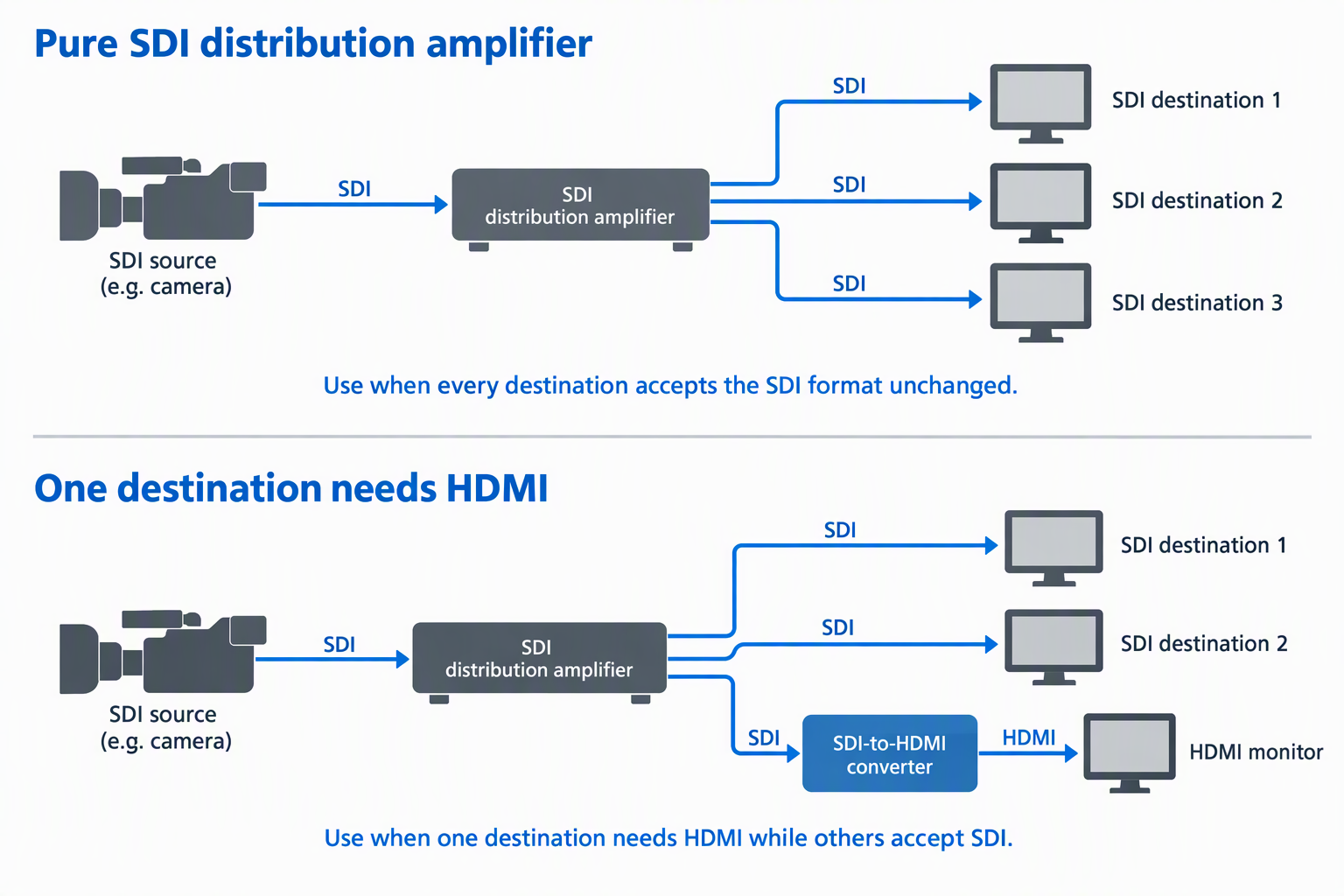

6. Decide whether HDMI belongs in the same box
Pure SDI DAs keep the signal family consistent and maximize SDI output count. The AVMATRIX SD2080 is different because it combines four SDI outputs, four HDMI outputs, conversion, and scaling. It fits mixed confidence-monitor and broadcast paths.
Conversion adds setup choices and may add processing. Use a pure DA when every destination accepts the source’s SDI format unchanged. If only one destination needs HDMI, a separate SDI-to-HDMI converter may keep the main distribution path simpler.
7. Verify mounting, airflow, and service access
AVMATRIX includes wall brackets on its compact DAs and two brackets with the SD2080. Mounting hardware keeps BNC cable weight from pulling a loose box around the desk or rack. Leave room to release BNC connectors and inspect signal or power indicators.
Enclosures also need airflow. Do not bury an aluminum or metal DA under cable bundles that trap heat or block service access. Label every output at both ends so a failed monitor path can be traced without disconnecting the source feed.
FAQ
What does an SDI distribution amplifier do?
It takes one SDI input and drives several copies of that same signal to separate outputs. A proper DA can also equalize and reclock the signal for more reliable branches.
It does not create independent content for each display. Every destination receives the same selected feed unless another router or switcher changes the upstream source.
Can I use a passive BNC splitter instead?
A passive splitter is not the equivalent of an active SDI distribution amplifier. The DA powers, isolates, and often regenerates each output branch, while passive splitting changes the electrical load and can compromise the signal.
Use equipment designed for the SDI rate and output count. Long or critical production runs especially benefit from stated equalization and reclocking.
Does a 3G-SDI DA support 4K?
Not from the specifications supplied for these products. The clearly stated ceiling in this group is generally 1080p60 over 3G-SDI.
4K SDI may require higher-rate formats and matching equipment. Do not infer 6G or 12G capability from a 3G listing.
How far can 3G-SDI run through these amplifiers?
Detailed listings state roughly 100 to 120 meters or 328 to 330 feet for 3G-SDI under their named conditions. Cable type and installation quality materially affect the achieved distance.
J-Tech names Belden 1694A for its 330-foot claim. Test the installed run with the actual source, rate, connectors, and receiver before production.
Can one DA feed monitors and recorders together?
Yes, when every destination accepts the same SDI format and embedded audio or ancillary data it needs. A DA output can feed a compatible monitor, recorder, converter, encoder, or switcher input.
Check termination and format support at each destination. One incompatible receiver should be isolated to its own branch rather than inserted inline before other equipment.
When do I need an SDI-to-HDMI converter instead?
You need conversion when a destination accepts HDMI but not SDI. A pure SDI DA changes output count, not connector format.
The AVMATRIX SD2080 combines distribution and conversion. A separate converter may be cleaner when only one branch needs HDMI and the rest remain SDI.
Bottom Line
The Blackmagic Design Mini Converter SDI Distribution is the best overall eight-output choice for broad format support, reclocking, embedded audio, ancillary data, and ASI. Choose AVMATRIX SD1141 for a compact four-output install, SD1191-X for nine branches, SD2080 for mixed SDI and HDMI conversion, JOMOCARE for compact 5 to 12V operation, J-Tech Digital for 5 to 30V project power, HDSUNWSTD for a basic eight-output count, or Luocute for four outputs with ESD protection.
